Powerful Simplicity
A high-performance stereo DSP multi-effects pedal designed for guitarists who want studio-grade processing in a compact, low-latency format.
Key Features
Studio-quality 24-bit audio with low-noise analog front end
Ultra-low latency processing with real-time control
Highly versatile mono / stereo effects
No menu-diving UI
Single-Effect Architecture
DSP-1 runs one effect at a time, allowing maximum processing power, low latency, and consistent performance across all algorithms.
Each effect is carefully designed to maintain the original fidelity of your guitar, while digital signal processing allows for advanced features and creative sound design.
Overdrive / Distortion / Fuzz
Phaser / Flanger / Chorus
Vibrato / Tremolo
Compressor
Delay / Reverb
Tube Preamp models
Cabinet simulation
Equalizer
Chromatic tuner
Most effects have multiple modes / voicings to extend the versatility for complex stereo effects or advanced tone shaping.
Swiss Army Knife
Transparent cleans with lush echoes and modulation
Vintage drive with powerful tone-shaping controls
Modern sounds using advanced signal processing algorithms
“Whether you are in a bedroom, studio, or live stage - A small form factor solution that can do it all is a valuable addition to any guitar rig”
No Compromises
Designed with high quality audio performance in mind!
Low-noise, low-distortion analog front end designed to preserve dynamics before DSP

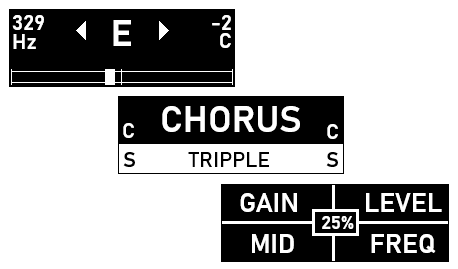

No Menu-diving
Using a simple UI structure, there are no secret menus or controls that require reading an extensive manual to use the DSP-1.
Open Source!
The base architecture of the DSP-1 is released as an open source project. This allows you to design and code your own DSP effects using this pedal.
Check out the projects page or the GitHub repository for more information
High Performance
Advanced measurement backed design for high quality audio performance
Extremely low latency 2.2ms
Signal/Noise ~90dB
DSP bypass typical THD 0.0015%
True stereo effects processing
24 bit resolution | 48 kHz sample rate
Standard power supply 9V - 150mA
Max input level +5dBu
Input impedance ~1MΩ
Output impedance 100Ω
Check out the downloads page for detailed performance and measurements
